‘Mbps’ stands for ‘megabits per second’ and it measures the download speed of your broadband connection. It is the maximum speed at which you can download data from the internet.

You can sign up to one of our broadband plans and bring your own modem. Your modem must be suitable for use on Fibre or VDSL/ADSL and must be compatible on Pulse Energy’s broadband network. No contract term (only 30 days’ notice will be required as Broadband charges are paid in advance) and technical support is not available. Phone packages are not available.

If you have requested a Pulse Energy modem, it will be sent out 3 working days before your connection date. If you are using your own modem, you can be connected within 5 days. We will send you a text message once your broadband has been connected.

No, your electricity rates will remain the same.

Yes, you need to have your electricity with us to sign up for broadband.

Yes, our Broadband rates include GST.

Once you have received your modem in the mail, and you have received a text message from us telling you your connection is ready, you can get your D-Link Modem-Router broadband set up in just a few minutes.

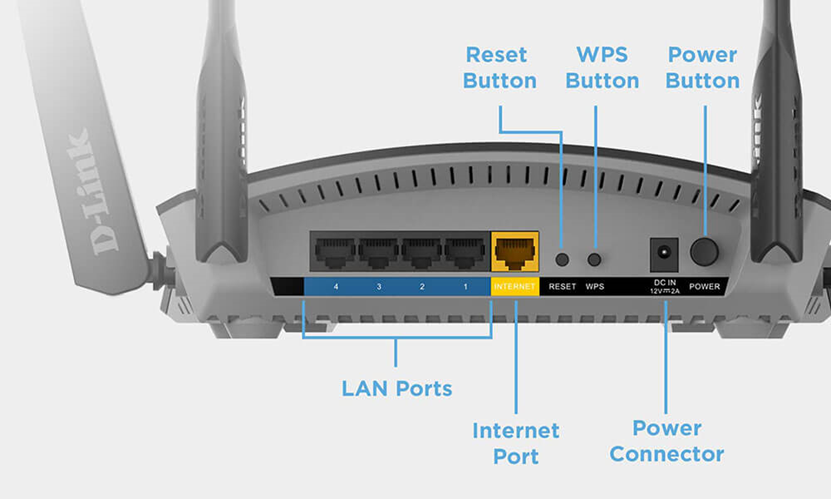

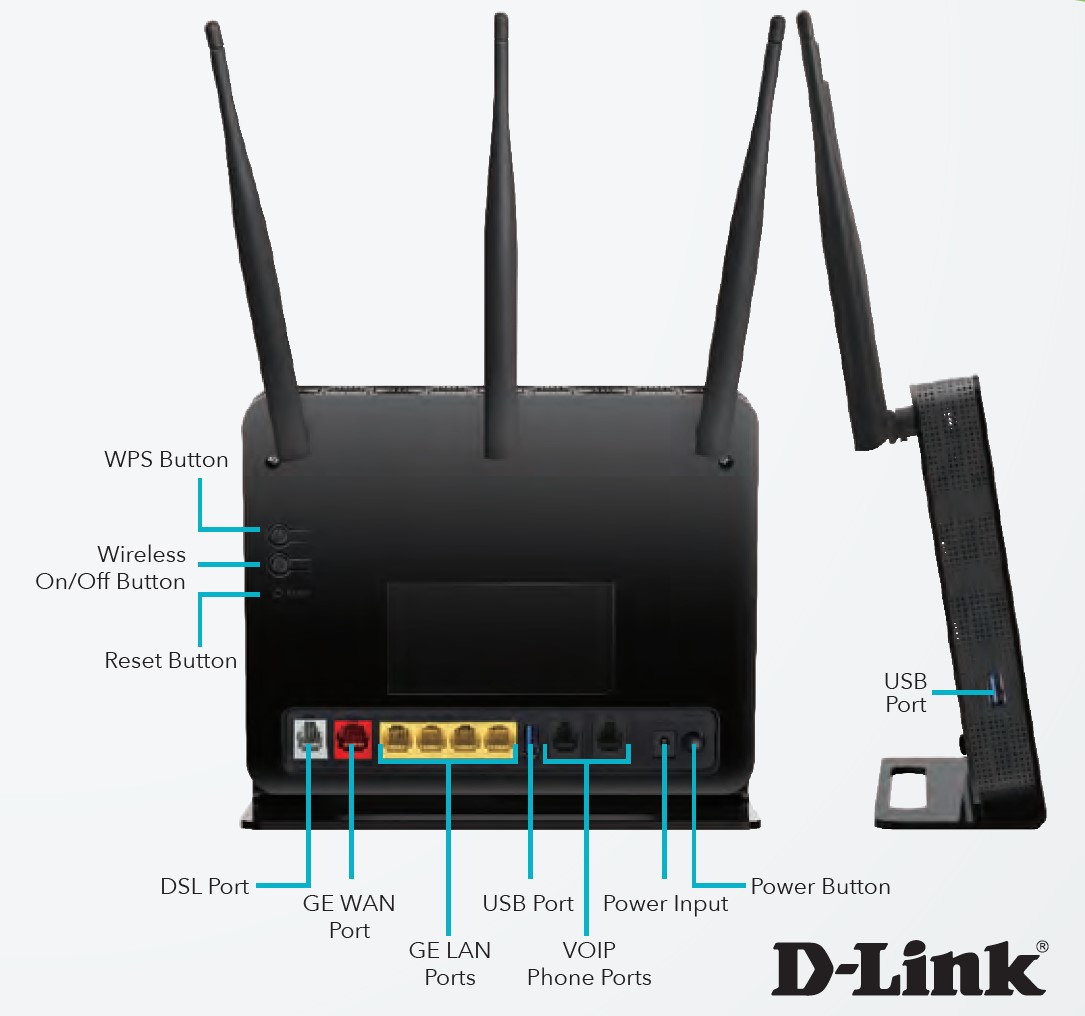

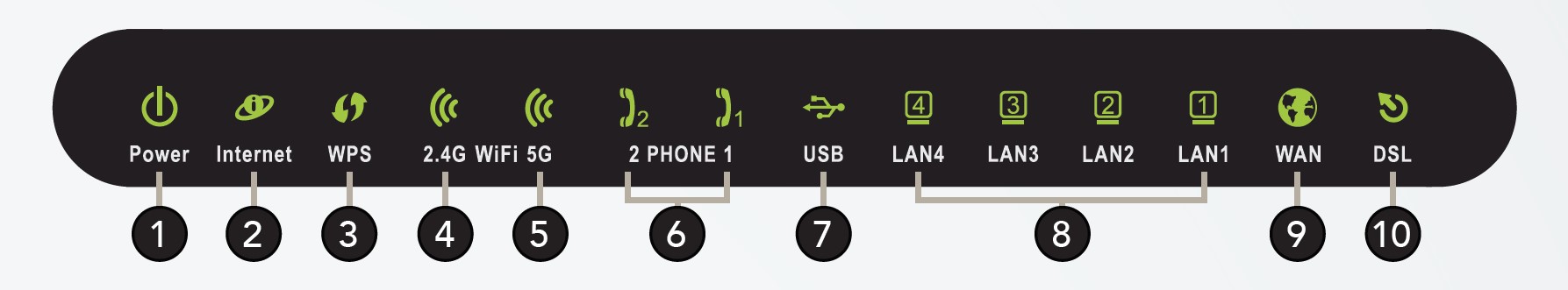

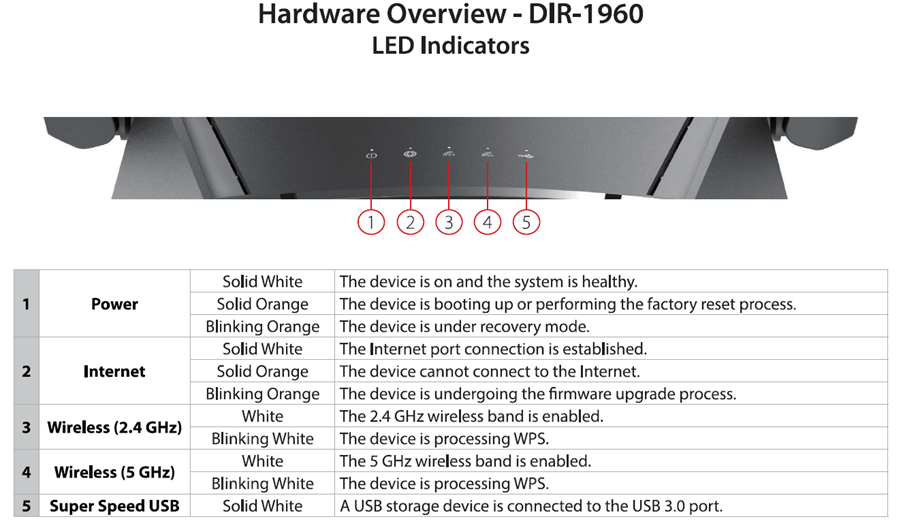

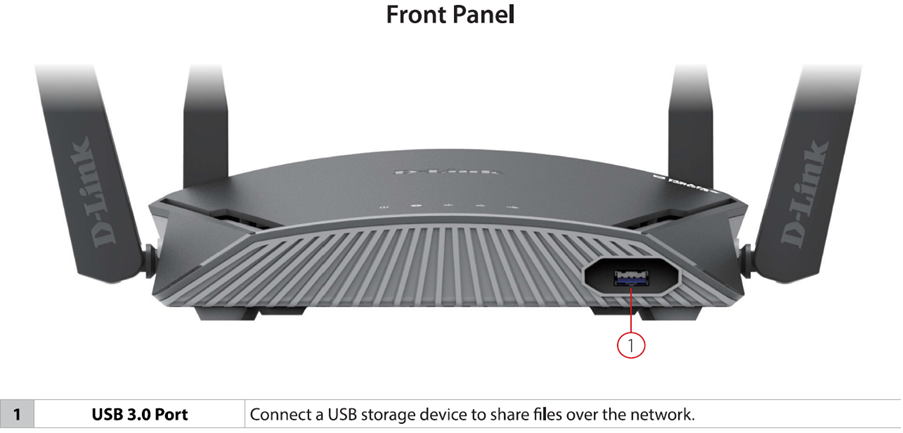

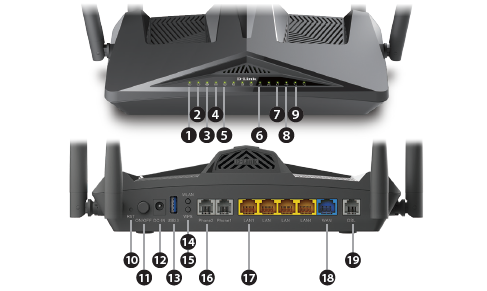

D-Link Modem-Router Hardware Overview:

We recommend using a Pulse Energy modem, but if you decide to bring your own modem, please see below the following configuration that your modem must support for it to be compatible.

Please note, if you choose to bring your own modem, technical support is not available.

Pulse Energy Broadband plans are compatible with a range of different modems, however not all modems will be compatible with our service or work as efficiently as one that is provided. Generally, modems are quite straightforward to set up and don’t require much manual input, however if it doesn’t work when you plug it in, you may have to configure your modem with the below settings.

For Fibre:

You may not need to place all settings below but the most important are in Bold:

For ADSL:

You may not need to place all settings below but the most important are in Bold:

For VDSL

You may not need to place all settings below but the most important are in Bold:

For more information on how to update your settings, please refer to our website.

Our broadband speeds are based on the local fibre companies headline speeds. You may experience higher or lower speeds than this due to factors such as, services are not available in all locations, the performance of your modem, location of the server you’re connected to, the performance of your device and your in-home Wi-Fi setup can impact the speeds experienced. 

Please note, this is only required if you have performed a factory reset. To set up your modem for use after a factory reset, please follow the below steps. To begin, please ensure your power light is blue. There are two options to configure your modem, either using the D-Link Wi-Fi app as covered below, or using an internet browser such as Google Chrome, Firefox, or Safari.  Tip: If you are using a mobile, it is best to turn off your mobile data for this process.

Option 1: Using your smartphone and the D-Link App to set up your Modem:
1. Search and install the free D-Link Wi-Fi app available on the App Store or on Google Play.

2. Launch the D-Link Wi-Fi app from the home screen of your device.

3. Tap Install New Device in the middle of the screen.

4. Tap YES to scan the setup QR code located on the Quick Install Card and proceed to step. Alternatively, you can tap NO to proceed to step 6.

5. If the QR code is not scanned, Select Router and select DIR-2680 from the list of available devices. Tap NEXT to continue.

6. You will now be presented with an on-screen guide. PLEASE IGNORE the following screens tapping NEXT on each screen until you see the circular progress counter. If you are presented with NOTHING, you need plug or restart your router. Here is a summary of the remaining steps: a) Wait for the top LED light to turn blue. b) Connect to the Wi-Fi with the Username and Password shown in the App. c) When prompted to select Internet Service Provider, select OTHER and tap NEXT. d) Tap Yes to enter an Internet Username and Password. Use dlinkdefault as both the username and the password. Tap NEXT. e) Set you own Wi-Fi network name and password or keep the one shown. Write it down somewhere. Tap NEXT. f) Set an Admin password for your device. You will need this if you want to change device settings through the web-based user interface (e.g., admin2680). Tap NEXT. g) Choose to keep your device up to date automatically. Tap NEXT. h) Tap SAVE.

7. Process complete. You can now connect to your Wi-Fi network using the Wi-Fi name and password. Tap FINISH to end the setup.

Option 2: Using the Setup Wizard through the web configuration utility.

1. Connect your device to the router’s LAN port via your own network cable, or by connecting your device to the router’s Wi-Fi. When the network has connected, open your web browser, and enter http://192.168.0.1 in the URL field as shown.

2. If this is your first time logging in, the setup wizard will automatically appear.

3. Agree to the Terms of Use and Privacy Policy then click Next and follow the on-screen instructions to configure your new D-Link router and connect to the Internet.

4. From the Internet Service Provider list, choose Others. Click Next. (If you are presented with ‘Configure Your Internet Connection’ please check your cabling and that your Fibre ONT is powered on. Once corrected, click Back until you are at the start of the Wizard and try again).

5. Enter an Internet Username and Password. Use dlink default as both the username and the password. Click Next.

6. Type in a Wi-Fi Network Name and Wi-Fi Password to setup your Wi-Fi network. Your wireless clients will need to have this password to be able to connect to your Wi-Fi network. Click Next to continue.

7. To secure the router’s configuration access, please enter a new AdminPassword. You will be prompted for this password every time you want to use the router’s web configuration utility. Click Next to continue.

8. Confirm your time zone is Pacific/Auckland. Click Next to continue.

9. Choose to ‘Keep my device up to date automatically’. Click Next and Next again to finalise the settings or Back to make any changes.

10. Please wait while the device settings are saved. Do not turn off or unplug your router during this time. Your setup is complete. You can now connect to your Wi-Fi using the password.

Here are the steps for configuring your own modem router for a Pulse Energy Broadband connection:

• If your Internet light does not come on after plugging in your DSL/Ethernet cable & Power cable, please perform a ‘Factory Reset’ of your modem router. There may be a ‘Reset’ small indent button on your modem which can be pressed for 12 seconds using a paper-clip.
• You can also log in to your Modem Router’s interface and search under the Administration Tab and select the option to ‘Restore your Modem Router to Default settings’.

If no Internet light comes on, you will need to log in to your Modem Router using it’s IP address on a web browser. (Please see your instruction manual for further information on this. Commonly this may be http://192.168.1.1 but this may differ depending on your modems current configuration from its manufacturer).

Configuration settings are as follows:

For UFB:

You may not need to place all settings below but the most important are in Bold:

For ADSL:

You may not need to place all settings below but the most important are in Bold: For ADSL:

For VDSL

You may not need to place all settings below but the most important are in Bold:

Once you have received your modem in the mail, and you have received a text message from us telling you your connection is ready, you can get your broadband set up in just a few minutes.

Follow these simple instructions to get you on your way.

If you have Fibre and received your modem after 9 March 2022, please follow the instructions below:

• Fibre Connections (D-Link DIR-1960 Router)

If you have received your modem before 9 March 2022 or have ADSL/VDSL Connections, please follow the instructions below:

• Fibre Connections
• ADSL or VDSL Connections
• Quick Start Guide

Note: If your house doesn’t have an ONT and you have requested a new Fibre connection, a technician will visit your home to install your broadband and set up your modem for you.

Fibre Connections - TP-Link VX230V Router

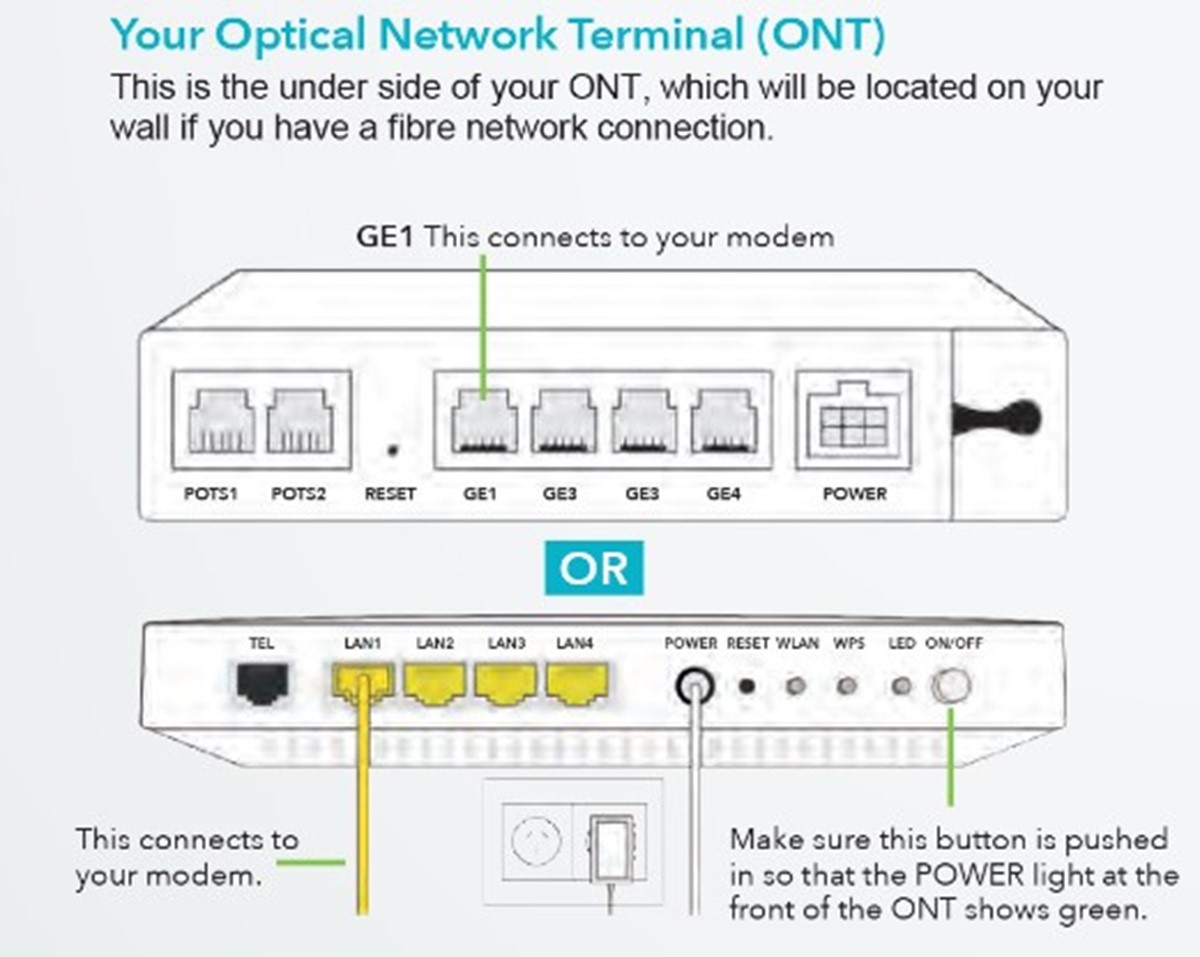

Before you start, make sure your ONT is turned on at the wall.

Set Up

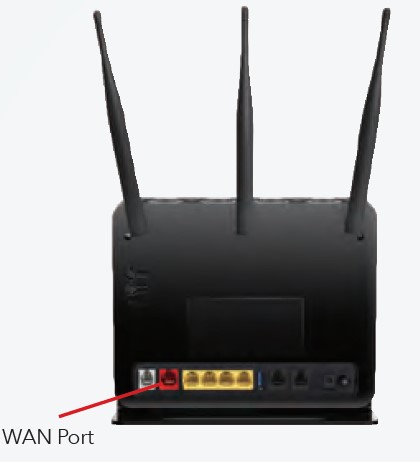

1. Connect the yellow ethernet cable (Included in your modem pack) from the blue labelled WAN Port of your modem router to either the LAN1 or GE1 Port of your ONT. Your ONT will be located on your wall.

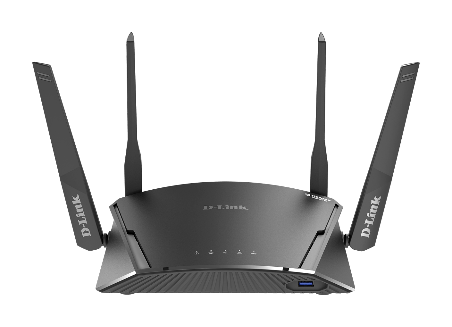

Fibre Connections - D-Link DIR-1960 Router

Before you start, make sure your ONT is turned on at the wall.

Set Up

1.Connect the black ethernet cable (Included in your modem pack) from the yellow Internet Port of your router to either the LAN1 or GE1 Port of your ONT. Your ONT will be located on your wall.

2. Plug the power adapter into your modem router and then to your nearest power point. Ensure this is turned on at the wall socket.

3. Press the power button on your modem to turn it on. Wait 1 minute and then you should see white lights on 1, 2, 3 & 4 below on your modem.

Fibre Connections

Before you start, make sure your ONT is turned on at the wall.

Set Up

1. Connect the yellow ethernet cable (Included in your modem pack) from the red WAN Port of your modem router to either the LAN1 or GE1 Port of your ONT. Your ONT will be located on your wall.

2.  Plug the power adapter into your modem router and then to your nearest power point. Ensure this is turned on at the wall socket.

3. Press the power button on your modem to turn it on. Wait 1 minute and then you should see green lights 1, 2 and 9 below on your modem

4. If you have a phone or landline, use the grey phone cable provided in your modem pack and connect it from the VoIP1 Port on the modem to your landline phone. Make sure that if your phone needs a power supply, that this is turned on at the wall.

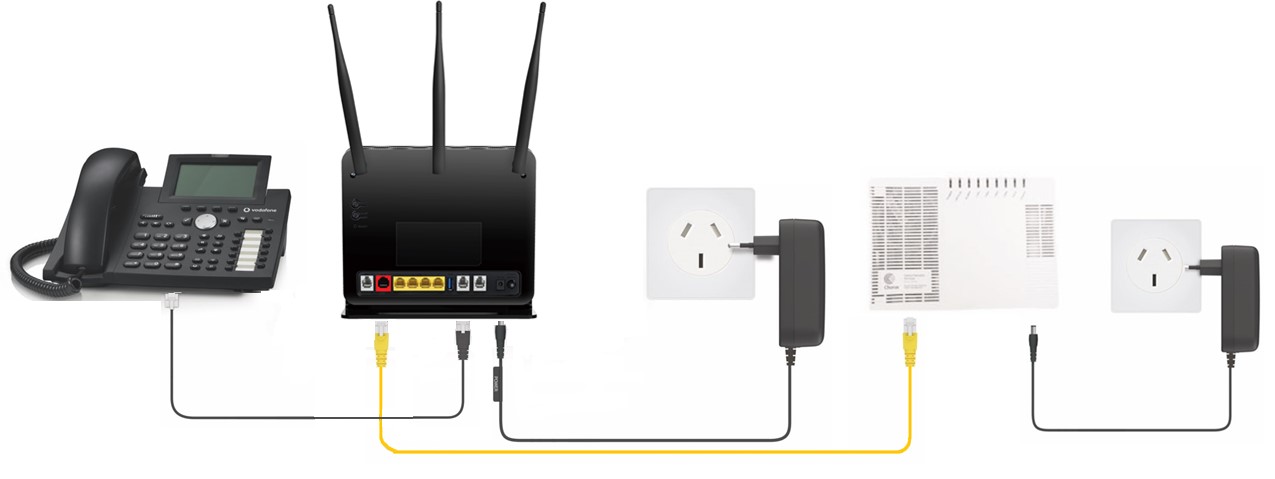

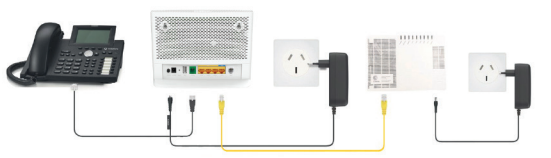

Fibre Connection Flow Diagram

ADSL / VDSL Connections

Before you start, it is important to identify your phone socket. (One port or two ports)

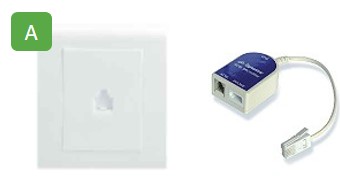

A: One Port

• If a technician has not visited your home to install Broadband, then you will need a standard socket Broadband filter.

This is required to make the connection with your modem work.

This can be purchased from your local electronic store.

B: Two Ports

• If you have two sockets you will not require a broadband filter.

Set Up

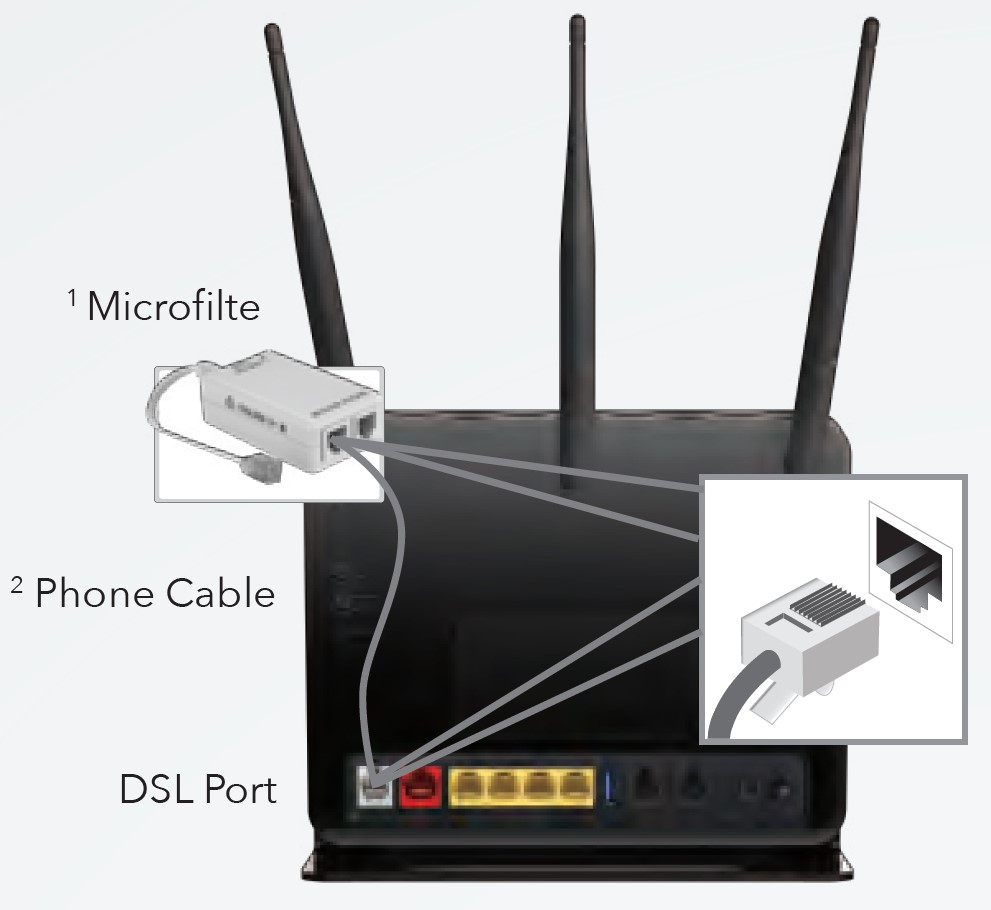

1. Connect the microfilter to the phone jack on your wall.

2. Connect the grey Phone Cable from the microfilter to the DSL Port of your modem router

3. Plug the power adapter into your modem router and then to your nearest power point. Ensure this is turned on at the wall socket.

4. Press the power button on your modem to turn it on. Wait 1 minute and then you should see green lights 1, 2 and 10 below on your modem

5. If you have a phone or landline, use the chord from your previous connection, to connect the VoIP 1 Port in the modem to your landline phone. Depending on your landline model, the name of this cord will be either RJ12 - RJ12 or RJ12 - RJ11.

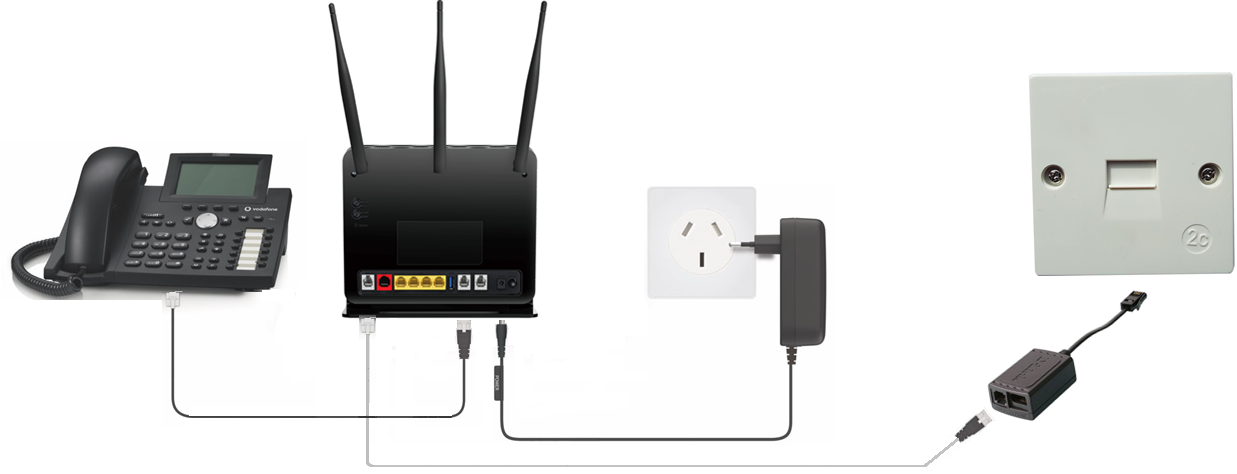

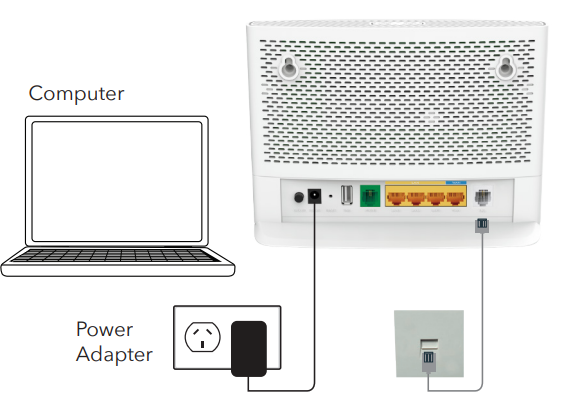

ADSL/VDSL Connection Flow Diagram

To change your WiFi password to something that is memorable for you, follow the instructions below.

Log into the modem

You can do this via WiFi (SSID: D-Link DVA-2800) or by connecting the yellow ethernet cable from the yellow LAN port on the modem to connect to your computer.

1. Open a web browser (such as Chrome or Internet Explorer), and type in 192.168.1.1 in the address bar.
2. When asked for the password, write ‘admin’ as a default

NOTE: If this is your first time logging in to your modem, the set up wizard may appear (See image below). It is IMPORTANT to click cancel. This will return you to the main screen where you can change your password and restore your factory defaults.

3. From the top menu, click ‘Settings’ then select ‘Wireless’

4. Once you are in the wireless screen, you can type your own password into the password box. You can also change the name of your WiFi connection as well.
5. When finished, select ‘save’ from the top right hand menu

You can now use your new WiFi password instead of the default one.

To do a factory reset on your modem, follow the steps below.

Log into the modem

You can do this via WiFi (SSID: D-Link DVA-2800) or by connecting the yellow ethernet cable from the yellow LAN port on the modem to connect to your computer.

1. Open a web browser (such as Chrome or Internet Explorer), and type in 192.168.1.1 in the address bar.
2. When asked for the password, write ‘admin’ as a default

3. From the top right hand menu select ‘Management' then from the drop down click 'System Admin'

4. When you are in the System Admin Screen, you will then need to click ‘System’ from the top right hand corner.

5. Once in the System screen, you will then see Restore to Factory Default Settings, click ‘Restore’ next to this and click ‘OK’

This will reset the Router to Factory settings.

The internet light on the router will turn Red for 10 Seconds, before turning Green.

Please make sure that if you have to log into the Router again, click 'CANCEL' if prompted with Welcome Wizard. The Modem should already be configured after Factory Reset.

If you have the Dlink DVA-2800 modem, which is provided by us, please follow the steps below.

Please note: We are unable to provide support for modems that are not supplied by us.

1. Open your internet browser (E.g. Internet Explorer or Google Chrome) and in the address bar type: http://192.168.1.1

If you are prompted with a ‘Welcome’ Page, please select ‘Cancel’ as you do not need to manually configure your Router to connect to the Internet.

If you are prompted to input a password, this will be ‘Admin’ by default.

Change your WiFi Network Name

2. To change the WiFi Network name, select the Tabs: ‘Settings’ & ‘Wireless’.

Here you can change the WiFi Name (SSID) of both the 2.4GHz & 5GHz WiFi frequencies.

The differences between the two frequencies are the range (coverage) and bandwidth (speed) that the bands provide.

The 2.4 GHz band provides coverage at a longer range but transmits data at slower speeds.

The 5 GHz band provides less coverage but transmits data at faster speeds.

You may wish to have the same Wi-Fi Name to assign in the 2.4Ghz & 5GHz fields as this will assist your devices in connecting to the most optimal frequency depending on how far away you are from the Router.

Change Your WiFi Password

3. To change the 'Admin’ Password you use to log in to the Router in your Web browser - Go to ‘Management’/ ‘System Admin’.

Here you change the Admin password and select ‘Save’.

If you do not pay your bill by the due date, we may restrict your broadband services.

If your services are restricted, you will be charged a $12 blocking fee and a $12 unblocking fee for us to release the restriction of your broadband services. If your bill remains unpaid, we may cancel your broadband account with us.

All prices include GST.

Our Unlimited Broadband and Phone Packages are designed for personal use by residential customers.

Our Fair Use Policy has been developed by reference to average customer profiles and estimated customer usage of our services. From time to time, we may monitor usage patterns. If your usage of our services materially exceeds estimated use patterns over any week or month or is inconsistent normal usage patterns, we may contact you to advise you that your usage is in breach of our Fair Use Policy.

We will request that you adjust your usage patterns to come within our Fair Use Policy. If your excessive usage continues then you may be charged for the Excessive part of your usage at our Standard Rates and the Services may be suspended. Our Standard Broadband rates are $0.1+GST/GB and our Standard Phone Rates can be found here.

Please contact our Customer Care Team to arrange the broadband connection at your new home. We recommend that you give us 30 days’ notice.

There are three different methods for connecting your landline phone depending on how your Fibre has been installed at your home.

• Connecting through your modem
• Connecting with integrated wiring + voice box
• Connecting with integrated wiring through phone jack point

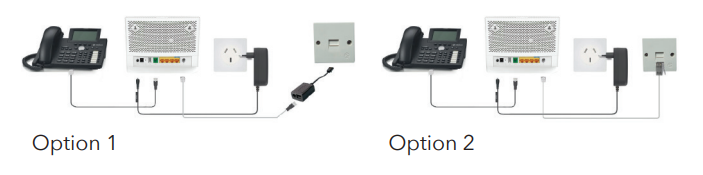

Option 1: Connecting your landline phone through your modem

This will be you if your home is not set up for integrated wiring. This means your landline phone plugs straight into the modem and you do not use other phone jacks in your home.

To set up your landline phone, simply plug your handset phone jack into the back of your modem (through the VoIP 1 port) using the grey telephone cable that was supplied in your modem box.

Once this is connected, you will be able to make calls straight away. If your current phone cable does not fit into the VoIP 1 socket, have a look at the modem from your previous retailer. They should have a cable that is similar to the grey cable that came with our modem, unplug that from the previous modem and replace it with the cable that’s on your phone, now you should have a cable that’ll fit into the VoIP 1 socket of our modem.

Option 2: Connecting your landline phone with integrated wiring + voice box

If you have integrated wiring through your Optical Network Terminal (ONT) then you will be able to use your existing jackpoint to connect your landline phone.

This will be you if you have a small white ‘voice box’ installed near your ONT.

Connect the grey telephone cable that was supplied in your modem box from your voice box to the VoIP1 socket in your modem.

You can now use any phone jack points in your home to plug in a landline phone. If your phone requires electricity, make sure it is plugged in at the wall power socket.

Option 3: Connecting your landline phone with integrated wiring through the phone jackpoint

In some homes, the phone jack points are integrated throughout the house without a white voice box.

If this is you, you will need an extra cable similar to the one that is currently plugged into the phone jack of your phone. Plug one end of the cable into the VoIP 1 port of Modem and the other end into any jack point in your home.

This will allow you to use all other jack points in your home normally.

Press *61 to turn on call waiting

Press *81 to turn off call waiting

To turn off your voicemail dial *53

Once your broadband connection has been set up, you can connect your landline phone.

Please note, it can take up to 3 hours for your phone to set itself up once it has been connected.

ADSL or VDSL Connection

Use the cord from your previous landline connection to connect the VoIP1 Port on the modem to your landline phone.

If your phone cable is unable to fit into the VoIP 1 Port (See diagram below), or you no longer have this chord, then a RJ11 cable can be purchased from your nearest PB Tech, Jaycar or electronics store.

Fibre Connection

Using the grey Phone Cable that is included in your modem box, connect this cord from the VoIP Port on the modem to your landline phone. (See diagram below)

For more detailed instructions on setting up your landline phone with Fibre click here

Your caller ID will be turned on by default.

To turn on caller ID press *30. You will only need to do this once and the setting will be saved.

To turn off caller ID press *31. Again, you will only need to do this once and the setting will be saved.

Press:

3 – For advanced options (Press 1 to send a reply, 2 to call the person who left the message, 3 to listen to the message details and 4 to place an outgoing call)

4 – To go back to the previous message

5 – To repeat the current message

6 – To play the next message

7 – To delete the current message

8 – To forward the message to another mailbox

9 – To save the message to a folder (Press 0 for new messages, 1 for old messages, 2 for work messages, 3 for family messages, 4 for friends’ messages)

Please check that the previous occupants have not taken the power chord with them. If this is the case, please contact us to request a new power chord.

To find out more, watch the video here.

You will receive a text message or a phone call from the Chorus Fibre Install Technician to confirm your install, 3 days beforehand. They will provide you with an am or pm time slot for the day you have indicated you would like your Fibre installed.

Yes, the property owner must give written or verbal permission to install Fibre at your property.

If you need to change the date that the Install Technician visits your home, you must give at least 3 days’ notice. To change this date, please contact us. You will need to be home when the technician visits your home.

3 - 6 hours

The further away from your modem you are, the more likely you are to experience a weaker WiFi signal.

Try positioning your modem in a central area of your house away from obstacles such as walls or other home appliances.

For more tips, check out ‘How do I fix my slow Wifi’

There are many things you can do to help your Wi-Fi if you believe it is not performing as fast as it should be. We have outlined these below.

• Number of Users
• Position of your Modem
• Modem
• Interference
• Neighbours

Number of Users

The more people using your Wi-Fi connection, the less wireless bandwidth there is available to each person’s device. This can often cause your Wi-Fi to slow down. We recommend that where possible you connect internet devices to the Ethernet so that the Wi-Fi bandwidth can be reserved for mobile devices.

Position of your Modem

For best performance, we recommend that you place your modem up high in a central area of your house. If the modem is at ground level and behind a desk or piece of furniture your signal may be affected.

The closer your devices are to the signal, the stronger your connection will be. This will result in better Wi-Fi performance.

Modem

We highly recommend you use the modem we supply to you with your plan. Our modems are one of the fastest on the market and provide better performance than many others.

Interference

Often home appliances such as Bluetooth speakers, microwaves, baby monitors and cordless phones can interfere with your Wi-Fi signal. Other barriers in your home that can cause Wi-Fi interference include hot water cylinders, walls or any obstacles that contain metal.

Neighbours

Your neighbours' Wi-Fi can often cause signal interference with your Wi-Fi. This is more common in apartment buildings where there are many access points. We highly recommend choosing a different Wi-Fi channel – this will be either 2.4Ghz or 5Ghz.

On some specific devices, you may be able to connect without a password if the device has a 'WPS' (WiFi Protected Setup) button.

To connect to WiFi, simply press the respective WPS buttons on your D-Link modem and your device to instantly establish a secure connection.

Your modem relies on electricity as a power supply so your broadband connection will not work if there is a power cut. It is a good idea to always have a fully charged mobile phone in case of emergencies.

There are a number of factors that can affect your Broadband performance and speed. For a list of tips and suggestions to help your Broadband connection click here.

If you are still concerned about the speed of your connection, we recommend you do a speed test or contact our Customer Care Team.

To measure the speed of your broadband you can use a free independent website, such as www.speedtest.net

Before testing, make sure the Wifi on your modem is turned off and that no internet use is in process (Such as Netflix or downloads). You will need to make sure the device you are testing is plugged directly into your modem via the ethernet cable.

If you are not getting the desired result, please change the server to ensure it is not an issue with the remote server.

You will need to return your modem in a tracked courier to Pulse Energy, Level 5, 33 Enfield Street, Mt Eden, Auckland 1024 within 14 days. Please note a Modem Return Fee of $20 will apply.

If the modem is not returned within 14 days you will be billed $170 for this.

You can request a tracking return label free of charge by contacting us. Please note you will need access to a printer.

All prices include GST.

If you have signed up online, you will be required to give us 30 days’ notice.

If you signed up with one of our door to door or outbound sales agents, you have the right to cancel free of charge within 5 days of signing up.

If your modem has been sent, you are required to send this back to us unopened within 14 days of receiving it. Please note a Modem Return Fee of $20 will apply.

If your modem has been opened or damaged or is not returned within 14 days you will be required to pay the full Modem Fee of $170 and Modem Delivery Fee of $20.

Modem must be sent in a tracked courier to Pulse Energy, Level 5, 33 Enfield St, Mt Eden, Auckland 1024. You can request a tracking return label free of charge by contacting us. Please note you will need access to a printer.

All prices include GST.

To cancel your broadband plan, please contact us.

You will be required to give us 30 days’ notice and any outstanding charges will be added to your final bill.

If you have requested a Pulse Energy modem and decide to leave Pulse Energy Broadband within 24 months, you will be required to pay a $170 Modem Fee.

All prices include GST.
